BTT6030-2ERA INFINEON Power Switch ICs - Power Distribution PROFET
1.Application
•Suitable for resistive, inductive and capacitive loads
•Replaces electromechanical relays, fuses and discrete circuits
•Most suitable for loads with high inrush current, such as lamps
•Suitable for 12 V and 24 V Trucks and Transportation System
2.Basic Features
•Two channel device
•Very low stand-by current
•3.3 V and 5 V compatible logic inputs
•Electrostatic discharge protection (ESD)
•Optimized electromagnetic compatibility
•Logic ground independent from load ground
•Very low power DMOS leakage current in OFF state
•Green product (RoHS compliant) and AEC qualified
3.Description
The BTT6030-2ERA is a 32 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14,Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by anN-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It isspecially designed to drive lamps up to 3 x P21 W 24 V or 1 x 70 W 24 V, as well as LEDs in the harsh automotiveenvironment
4.Diagnostic Functions
•Proportional load current sense for both channels multiplexed
•Open load in ON and OFF
•Short circuit to battery and ground
•Overtemperature
•Stable diagnostic signal during short circuit
•Enhanced kILIS dependency with temperature and load current
5.Protection Functions
•Stable behavior during undervoltage
•Reverse polarity protection with external components
•Secure load turn-off during logic ground disconnect with external components
•Overtemperature protection with latch
•Overvoltage protection with external components
•Voltage dependent current limitation•Enhanced short circuit operation

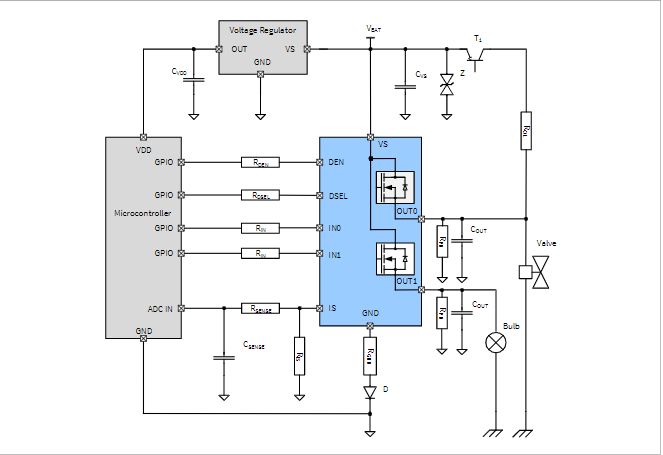

6.Block Diagram
|
|
